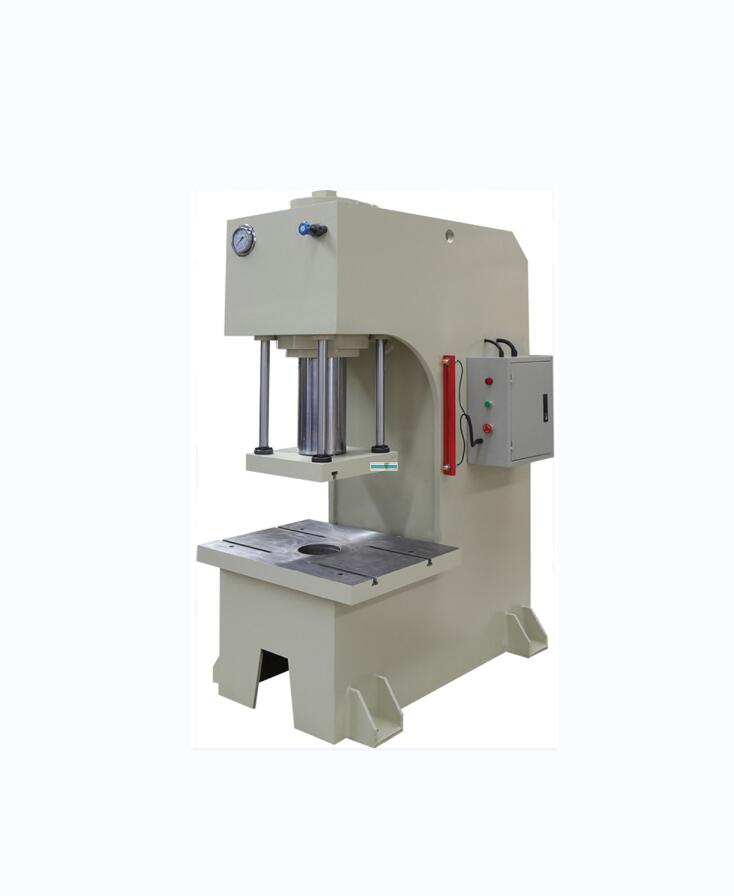

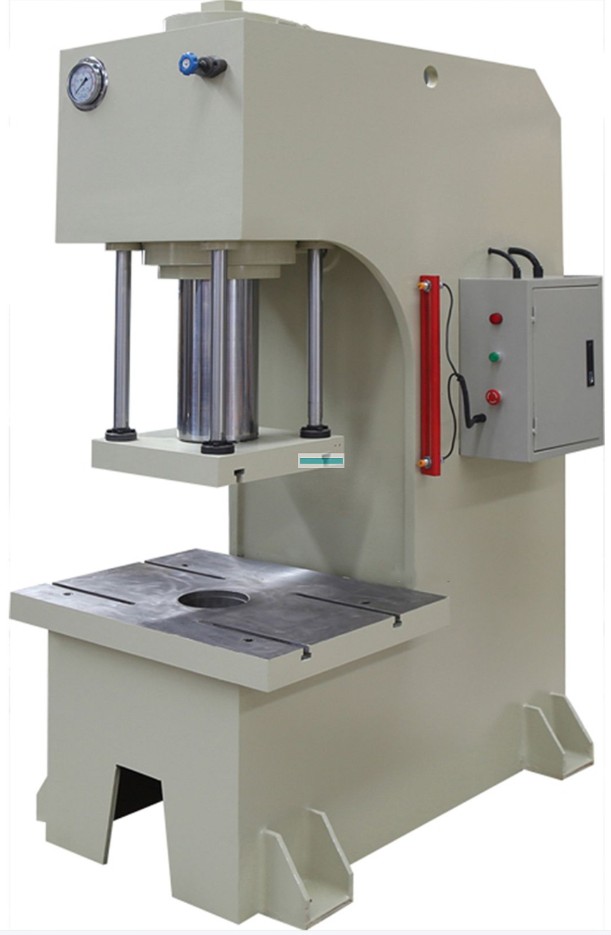

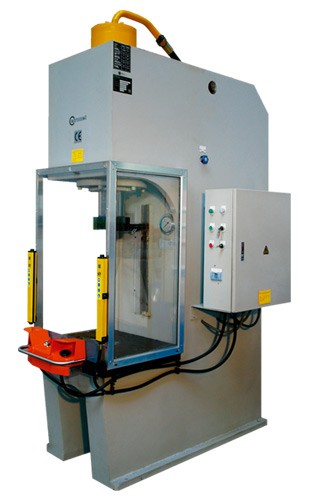

Type Y41 Single column arber hydraulic press is a kind of medium-small hydraulic press with multi-functions suitable for the calibration of the parts like bearings and moulding materiais and for the arber of bearings and sleeves.At the same time,the machine tool can also complete the technology function of bending ,marking and shelling of plate material parts,and the function of stretching of simple parts. It can also be used to press powder and plastic products which the requirements are not strict. Type Y41 series products are suitable for the flow assembly of macthine tool,internal combustion,textil machinery,axle ,bearing,washing machine,automobile motor,air conditioner motor,elctric appliance in military enterprise and joint venture enterprise. Our factory has a strong technical force and can meet any requirement from customer,such like technical parameter,specification and tonnage.
Main Technical Parameters
type
Unit
1T
1.6T
2.5T
4T
6.3T
10T
16T
25T
40T
63T
100T
160T
250T
Nominal force
KN
10
16
25
40
63
100
160
250
400
630
1000
1600
2500
The maximun working pressure of the fluid
MPA
4.5
5.1
4.4
5.6
5.2
8.1
13
20.3
22.6
16.5
26.5
25
25
The maximum distance between the under surface of the surface of the working platform
mm
300
300
300
390
450
500
550
600
700
800
800
1000
1000
The maximum stroke of the slipper
mm
120
160
160
200
250
300
350
350
400
500
500
500
500
Down velocity of the slipper
mm/s
60
44
42
35
48
45
48
48
33
39
36
24
23
Return velocity of the slipper
mm/s
82
75
70
58
75
100
115
115
94
84
98
65
55
Throat depth
mm
160
160
160
180
250
250
300
280
320
350
350
325
360
The size of the working platform
Front,Rear
mm
320
320
320
340
480
480
500
500
550
650
650
650
660
Left,Right
mm
480
480
480
480
550
550
650
650
700
700
800
800
800
The height of the working platform to the surface of the floor
